Jinlong Printable PVC Backlit Banner is specially developed for LED lightbox graphics. It is a regular illuminated signage substrate widely used by print shops, advertising material wholesalers and signage contractors, with grades available for indoor, semi-outdoor and outdoor lightbox applications.
Optimized surface density and weaving structure deliver even light diffusion. When backlit, it emits soft light and effectively hides the fabric mesh, minimizing LED hotspots and light streaks so an extra diffuser film is unnecessary for most applications. The printed graphics show vivid, saturated colors without haze or dullness and retain clear contrast between black and white. Color shift between lit and unlit conditions is well controlled.It features a smooth surface compatible with eco-solvent, solvent, UV and latex inks. Matte and glossy finishes are optional. We offer economy indoor grade and UV-stabilized weather-resistant outdoor grade. The coating maintains stable adhesion under heat from light sources. Its heat-resistant and anti-yellowing formulation reduces brittleness and discoloration caused by long-term lamp heating.
Jinlong strictly controls dot consistency to guarantee stable performance roll-to-roll and batch-to-batch. Combined lightboxes show no obvious color difference, saving customers repeated color calibration work. Grammage ranges from lightweight indoor grades to heavy-duty grades for large-span outdoor lightboxes. White, grey or black back coating options suit single-sided and double-sided lightboxes. Wide-width rolls help reduce seams. NFPA701, B1/B2 flame-retardant and REACH-compliant versions are available. Free samples are offered for light transmission, printing and heat resistance tests. Contact us for quotations.
Features of Printable PVC Backlit Banner
•Superior even light diffusion to hide fabric mesh and eliminate LED hotspots; no extra diffuser film required for most projects.
•Anti-yellowing & heat-resistant formula, stable coating adhesion without brittleness under long lamp heat exposure.
•Great print compatibility, works well with eco-solvent, solvent, UV and latex inks for even ink laydown without ink bleeding.
•Matte and glossy print surfaces optional, with various back coatings and flame-retardant / REACH grades for diverse lightbox projects.
Specifications of Printable PVC Backlit Banner
| Item | Printable PVC Backlit Banner |
| Weight | 300gsm-610gsm |
| Color | White,black back,gray back |
| Base Fabric | 200D×300D,500D×500D,840D×840D,1000D×1000D |
| Density | 18×12, 9×9, 16×16, 18×18 |
| Max Width | 6.2m |
| Light Fastness | Grade ≥ 6 |
| Temperature Resistance | -30℃ / +70℃ |
| Features | Uniform light transmission, tear resistant, uv resistant |
| Applications | Retail lightbox, subway lightbox, bus shelter lightbox |
| Applicable Ink | Eco-solvent ink, UV ink, eco-friendly solvent ink, latex ink |
| Roll Length | 50 meters (standard) |
| Surface Treatment | Matte / Glossy |
| Supply Type | Make-to-Order |
| OEM/ODM | Accepted |
| Note: color, weight, width, base fabric, surface treatment and all functional features are customizable. | |
Applications of Printable PVC Backlit Banner
Jinlong Printable PVC Backlit Banner is widely applied in LED backlit lightboxes for retail stores, chain brands and exhibition venues to create bright, evenly illuminated long-lasting branding graphics.
Retail Lightbox

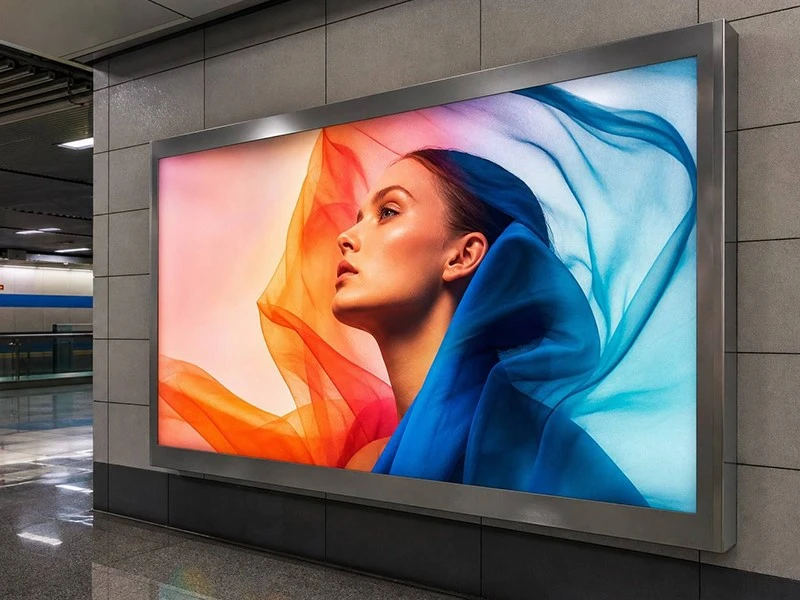

Subway Lightbox
Bus Shelter Lightbox
FAQ of Printable PVC Backlit Banner
