Manufacturing by Shares - Jinlong New Materials

Your Vision, Our Material Expertise

Consultation & Audit

•Application Scenario Analysis (Tent, Cover,Bouncer, Tank,Awning,etc)

•Physical Property Requirements (Tensile Strength,Tear Resident,Wear Resistant)

•Regulatory Compliance (B1, M2, REACH, 6P)

•Base Fabric(Yarn Count&Density)

Sample Development & Approval

•Sample Reverse Analysis (Fabric, Coating, Color)

•Custom Lab Swatch Production

•Swatch Delivery & Physical Approval

Quality Verification

•In-house Lab Testing (Aging, Flexing, Peeling)

•Customer Confirmation & Trial Feedback

•Contract Signing & Specification Freeze

Mass Production

•Knife Coating / Lamination Line Startup

•Real-time Online Color & Thickness Monitoring

•Customized Packaging & Global Logistics

CUSTOMIZATION OF BASE FABRIC

•Denier Options: 250D / 500D / 1000D / 1300D / 1500D/2000D

•Mesh Density: 9x9, 12x12, 16*15,18x18, 20x20(Standard),23x23, 30x32(Heavy-duty,for long-span & high-pressure air structures)

•Weaving Type: Warp-Knitted (high tear resistance), Woven (excellent dimensional stability)

CUSTOMIZATION OF GRAM WEIGHT (THICKNESS)

•Weight Range: 300gsm(10oz)-2000gsm(59oz (allowing 20gsm tolerance)

•Thickness: 0.25mm - 1.6mm

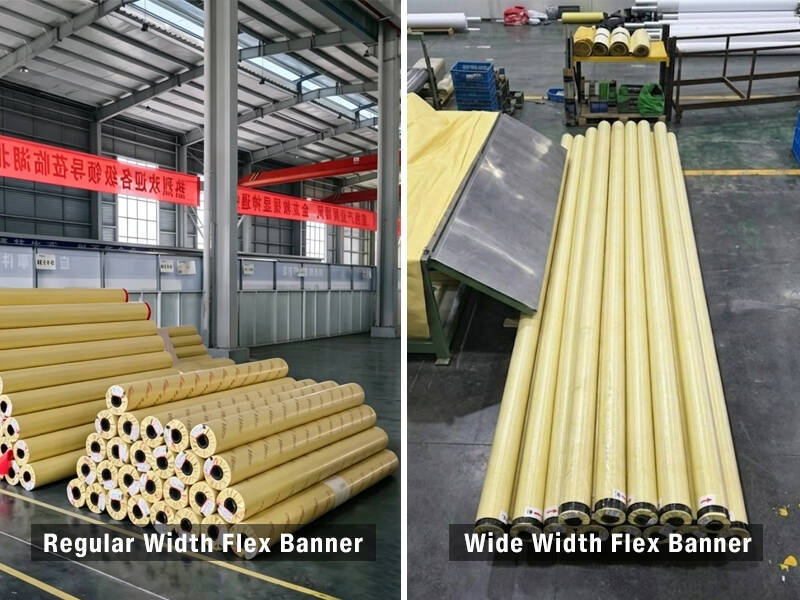

CUSTOMIZATION OF DIMENSIONS

•Width Range: 1.02m–3.2m (3.3ft–10.5ft), custom maximum width up to 5.1m (16.7ft) with fewer weld seams and enhanced structural safety.

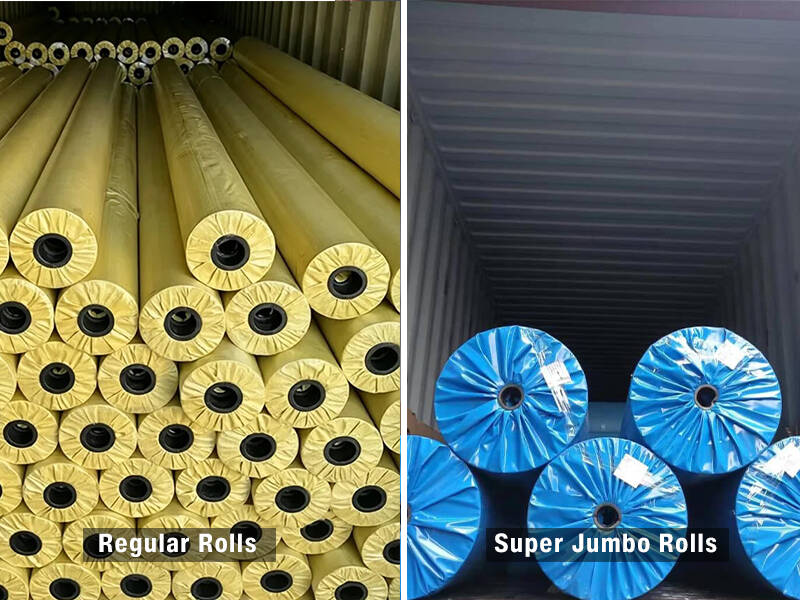

•Roll Length: 50m / 100m≈ 164ft-328ft≈ 55 yd-109yd

•Super Jumbo Rolls: Available up to 300m (984 ft / 328 yd) per roll. Customizable to meet high-speed automated processing requirements, significantly minimizing downtime for roll changes and maximizing production efficiency.

CUSTOMIZATION OF VISUALS & SURFACE TREATMENT

•Color Matching: Support full RAL & PANTONE Color / dual-color double-sided coating.

•Surface Gloss: High Glossy / Matte / Semi-matte

•Self-Cleaning Coating: PVDF / Acrylic : Ultimate self-cleaning ,extends product service life by 3-5 years compared to standard PVC materials.

CUSTOMIZATION OF FUNCTIONAL ADDITIVES

•Flame Retardant: B1, B2,M2, NFPA 701, Din 4102-1

•Climate Resistance: Anti-UV(High UV resistance, perfect for sunny Middle East & Australia),Cold Resistance(

Flexible & crack-free at -40°C extreme low temperature)

•Special Protection: Anti-mildew, anti-static, antibacterial, chemical resistance

CUSTOMIZATION OF BRANDING & PACKAGING

•Logo Customization: Embossed Roller(logo embossed into fabric, permanent & anti-counterfeit), Digital/Silk-screen Printing(high-res digital print, vivid & durable colors),Packaging Printing

•Professional Packaging: Clear Wrapping Film(protects products from dust & scratches, keeps goods clean and intact during shipment), Craft Paper / PE Film(Dual-layer guard, moisture & scratch resistant, keeps rolls intact in transit), Palletizing(forklift-friendly, fits automated warehousing)
